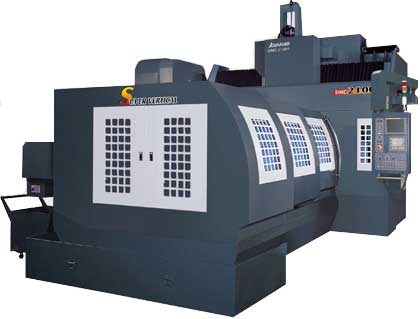

| 项目 \ 型号 | DMC-2100S | DMC-2600S | DMC-3100S | DMC-4100S | DMC-5100S | DMC-6100S | |||
| DMC-2100SH | DMC-2600SH | DMC-3100SH | DMC-4100SH | DMC-5100SH | DMC-6100SH | ||||
| 双柱间距 (mm) | 1796 (70.7") | ||||||||
| 工作台尺寸 (mm) |
2200 x 1500 (86.6" x 59") |
2700 x 1500 (106.2" x 59") |
3200 x 1500 (126" x 59") |
4200 x 1500 (165.4" x 59") |
5200 x 1500 (204.7" x 59") |
6200 x 1500 (244.1" x 59") |
|||
| 左右行程(X 轴) (mm) | 2100 (82.7") | 2600 (102.4") | 3100 (122") | 4100 (161.4") | 5100 (200.7") | 6100 (240.2") | |||
| 前后行程(Y 轴) (mm) | 1778 (70") | ||||||||
| 上下行程(Z 轴) (mm) | 800 (31.5") | ||||||||
| 主轴鼻端至工作台距离 (mm) | 150~950 (5.9"~37.4") | ||||||||
| 主轴锥度 | BT-40 / CAT-40 | HSK A63 (选配) |
适用于 DMC-2100S DMC-2600S DMC-3100S DMC-4100S DMC-5100S DMC-6100S |
BT-50 / CAT-50 | HSK- A100 (选配) |
适用于 DMC-2100SH DMC-2600SH DMC-3100SH DMC-4100SH DMC-5100SH DMC-6100SH |
|||
| 主轴轴承直径 (mm) | Ø70 (Ø2.8") | - | Ø90 (Ø3.5") | - | |||||
| 主轴转速 (rpm) |
8000, 10000, 12000 (选配) |
15000, 18000, 20000 | 6000 | 10000 | |||||
| 主轴马达 (kW) | 7.5 / 11 高低档 | 17 / 20 内藏式 | 22 / 26 高低档 | 26 / 31 或 31 / 40内藏式 | |||||
| X-Y-Z 快速进给 (m / min) | 12 / 12 / 12, 472" / 472" / 472" | ||||||||
| X-Y-Z 切削进给率 (mm / min) | 1-10000 | ||||||||
| 自动换刀系统 |
相邻刀最大 刀具直径 (mm) |
Ø75 (Ø 3") |
适用于 DMC-2100S DMC-2600S DMC-3100S DMC-4100S DMC-5100S DMC-6100S |
Ø125 (Ø 5") |
适用于 DMC-2100SH DMC-2600SH DMC-3100SH DMC-4100SH DMC-5100SH DMC-6100SH |
||||
| 储刀数 |
甩臂式 24 甩臂式 32 / 40 (选配) |
甩臂式 24 甩臂式 32 / 40 (选配) |
|||||||
| 最大直径 (mm) | Ø100 (Ø4") | Ø200 (Ø7.8") | |||||||
| 最大刀长 (mm) | 320 (12.6") | 400 (15.7") | |||||||
| 最大刀重 (kg) | 10 (22 lb) | 15 (33 lb) | |||||||
| 刀具选择模式 | 双向任意式，最短距离选刀 | ||||||||
| 工作台负载 (kg) | 10000 (22000 lb) | 12000 (26400 lb) | |||||||
| 机器尺寸 | 长 (mm) | 6633 (261.1") | 7633 (300.5") | 8633 (340") | 11153 (439.1") | 13666 (538") | 15590 (613.8") | ||
| 宽 (mm) | 4065(160") | 4070(160.2") | |||||||
| 高 (mm) | 3883(152.9") | 4013(158") | |||||||
| 机台重量 (kg) | 22800(50220 lb) | 24400(53745 lb) | 26000(57270 lb) | 37500>(82500 lb) | 42100(92620 lb) | 47000(103525 lb) | |||
|
| 标准附件 | 特殊附件 |
|
|
